TECHNICAL DATA
CONTROLLER:
PLC Control, extensible Inputs & Outputs
Multi Language Selection
DISPLAY:
Industrial Touch PC, colour touch screen
Full display of operation details and Alarm & Fault indicatorr
SOFTWARE PROGRAMS:
STANDARD SOFTWARE:
Basic programming (quick jobs)
Advanced programming (sophisticated jobs)
TRAPEZOIDAL SOFTWARE PACKAGE:
Pyramid shape, Inverted Pyramid shape, Angular shape
DATA LOGGING:
Operator Details, Serial Number, Batch Time & Qty., Wire Tension & Coil Dimensions
PROGRAMMING:
WinXP, user friendly text commands and screens
DATA MEMORY:
Network, W-LAN, remote programming or back-up
Ethernet, modem connection for support
OPERATOR CONTROLS:
PC-Controller, Joystick, start/stop & function keys
Foot Pedals: speed control, spindle brake, creep
Jog facility for diverse and spindle in stop and run modus
SETTING OF LEFT AND RIGHT LIMITS:
Winding limits, easy adjusted during winding and saved to the program

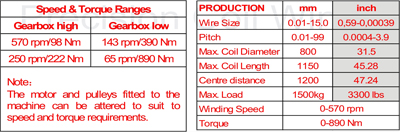

SPEED AND TORQUE CHANGE:
2-step reduction gear box
TRAVERSE:
Precision ball screw
Servo Motor 0,4 KW
MOTOR POWER:
AC Motor 5,5 KW, 380/415 V – 3 ph
MACHINE WEIGHT:
Approx. 1000 kg net, 1200 kg gross
MACHINE SPACE:
Approx. 2100 mm x 800 mm, 2000 mm

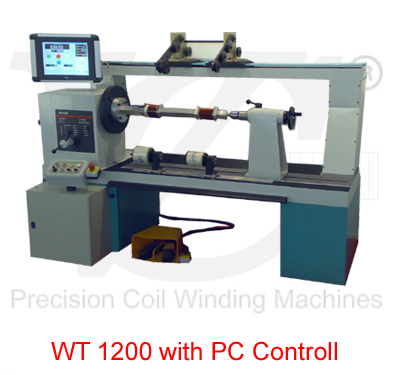

BASIC MACHINE CONSISTS OF:
1 x Machine Stand
1 x Winding Spindle (with faceplate)
1 x Traverse Unit
1 x Wire Guide Arm (with pulleys for round wire)
1 x Tailstock (with hand lever)
1 x Safety Interlock (String)
1 x PC Controller
1 x Machine Control Board
1 x Foot Pedal (speed control and spindle break)
1 x Gear Box (2-steps)
|
PC Machine Series:
PC Technology for Specialised Machine Solutions:
• PC with large Touch Screen and XP
WIN-XP, Network; Ethernet,
W-LAN, automatic winding program
calculation,self-learning and
much more
• 3 different Software Packages
- Standard Software Package
- Trapezoidal Software Package
- Data Logging Software Package
• Special Machine Solutions - for example:
- Insulation feeding system+accessories for measuring transformer
- Edge winding system+accessories for special coil
- Manny special purpose machinery on request
|
