[ VC-STANDARD CONTROL BOARD ]

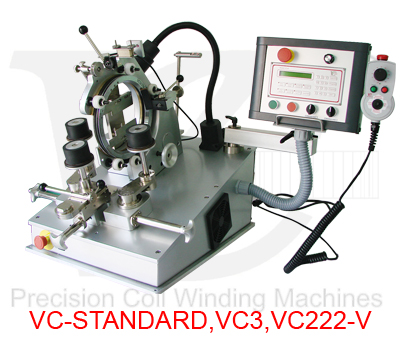

The VC-STANDARD is a Hi-Tech bench machine with LCD display modul with 2 text lines and incorporates VC's
flexible system with interchangeable heads and roller tables. It is designed with modern components: microprocessor
control, servo motor for head drive and precision servo motor for core drive. The user friendly
software guides the operator thru the programming with clear text commands. Typical jobs for the VC-STANDARD
are general taping and winding jobs as well as sophisticated applications.
|
TECHNICAL DATA
CONTROLLER:
MICROPROCESSOR CONTROLLER
DISPLAY:
LCD-DISPLAY WITH BACKGROUND ILLUMINATION:
CONTINUOUS READ OUT OF OPERATION DETAILS
PROGRAM CAPACATY:
THE CAPACITY IS VARIABLE,I.E. :
8000 PROGRAMS WITH 1 SEQUENCE
200 PROGRAMS WITH 40 SEQUENCES
1 PROGRAM WITH 8000 SEQUENCES
PROGRAMMING:
USER FRIENDLY TEXT COMMANDS
SEPARATE MENUE FOR BASIC SET UP
DATA MEMORY AND OUTPUT:
INTERFACE FOR PC
INTERFACE FOR SOFTWARE UPDATES
WINDING SPEED:
UP TO 1800 RPM
SEPARATELY PROGRAMMABLE LOAD SPEEDS
SEPARATELY PROGRAMMABLE WIND SPEEDS
CORE DRIVE:
SERVO MOTOR 0,30 KW.
WIRE PITCH CONTROL:
FULLY AUTOMATIC PITCH CHANGE
PROGRAMMABLE IN STEPS OF 0.001MM
CORE INDEX & REVERSE CONTROL:
FULLY AUTOMATIC
ACCELERATION & DECELERATION:
FULLY AUTOMATIC
STOPS FOR TAPS:
AUTOMATIC
SECTOR& BANK WINDING CONTROL:
FULLY AUTOMATIC
TAPING OPERATION:
FULLY AUTOMATIC
WINDING HEAD DRIVE:
SERVO MOTOR 0,8KW
SUPPLY VOLTAGES:
230 (110 AND 240) VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
800ˇÁ700 MM ; 100 KG NET, 130 KG GROSS
|
V&C Production Advantages
• Programming in less than 1 minute - with the new ˇ°V&C Quick Programming Systemˇ± that needs the programming of 4 major functions only ( Load turns, Wind turns, Pitch and Speed) while retaining all programmable functions known today in the toroid winding industry.
• Machine set up in less that 1 minute - with the ˇ°V&C Teach-in Systemˇ°that enables pitch and speed adjustment during winding with automatic saving of the improved value.
• Perfect machine control- with 3 standard speed control options : Foot-pedal or Hand-control or Start-automatic for selection of the most suitable control system for your application.
• Maintenance free machine base - no motor brush change, no gearbox -oil change, no disc change clutch, no drive chain replacement etc. |
 |
 |
|
|
|
|
