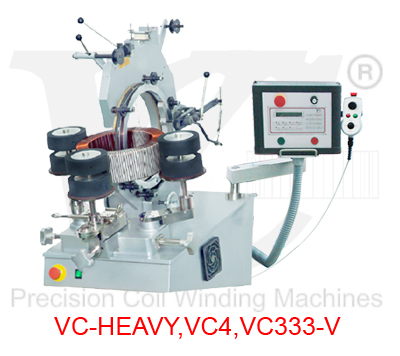

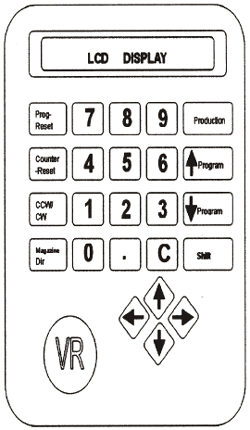

[ VC-HEAVY CONTROL BOARD ]
The VC-HEAVY is a Hi-Tech bench machine with easy to read LCD display and incorporates VC's flexible system with
interchangeable heads and roller tables. It is designed with modern components: microprocessor control,
servo motor for head drive and servo motor for core drive. The user friendly software guides the operator thru the
programming with clear text commands. Typical jobs for the VC-HEAVY are general and heavy duty applications.
The machine is very strong and heavy and it has a powerful SERVO MOTOR with 1.5KW for the head drive,therefore, it can handle thick wires at high speed.
|
TECHNICAL DATA
CONTROLLER:
MICRO PROCESSOR CONTROLLER
DISPLAY:
LCD-DISPLAY WITH BACKGROUND ILLUMINATION:
CONTINUOUS READ OUT OF OPERATION DETAILS
PROGRAM CAPACITY:
THE CAPACITY IS VARIABLE,I.E. :
8000 PROGRAMS WITH 1 SEQUENCE
200 PROGRAMS WITH 40 SEQUENCES
1 PROGRAM WITH 8000 SEQUENCES

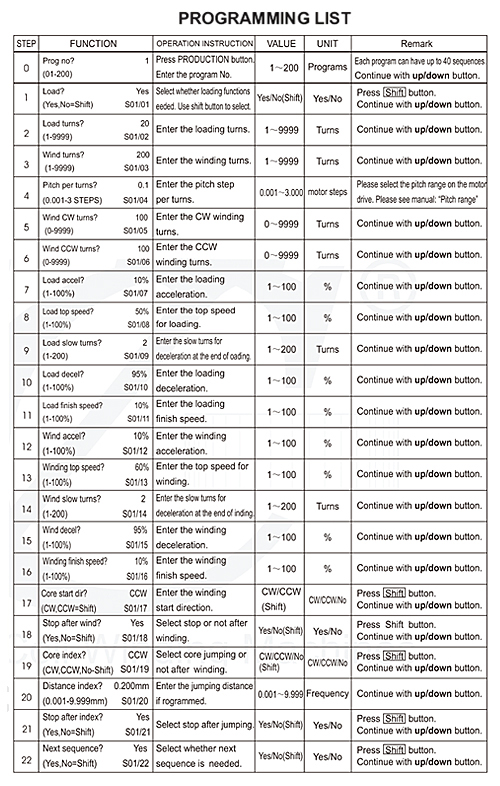

PROGRAMMING:
USER FRIENDLY TEXT COMMANDS
DATA MEMORY AND OUTPUT:
INTERFACE FOR PC
INTERFACE FOR SOFTWARE UPDATES
WINDING SPEED:
UP TO 1500 RPM
SEPARATELY PROGRAMMABLE LOAD SPEEDS
SEPARATELY PROGRAMMABLE WIND SPEEDS
CORE DRIVE:
SERVO MOTOR 0,40 KW.
WIRE PITCH CONTROL:
FULLY AUTOMATIC PITCH CHANGE
CORE INDEX & REVERSE CONTROL:
FULLY AUTOMATIC
ACCELERATION & DECELLERATION:
FULLY AUTOMATIC
STOPS FOR TAPS:
AUTOMATIC
SECTOR & BANK WINDING CONTROL:
FULLY AUTOMATIC
WINDING HEAD DRIVE:
SERVO MOTOR 1,5 KW
SUPPLY VOLTAGES:
230 (110 AND 240) VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
800 x700 MM
150 KG NET, 200 KG GROSS
|
V&C Production Advantages
• Programming in less than 1 minute - with the new ˇ°V&C Quick Programming Systemˇ± that needs the programming of 4 major functions only ( Load turns, Wind turns, Pitch and Speed) while retaining all programmable functions known today in the toroid winding industry.
• Machine set up in less that 1 minute - with the ˇ°V&C Teach-in Systemˇ°that enables pitch and speed adjustment during winding with automatic saving of the improved value.
• Perfect machine control- with 3 standard speed control options : Foot-pedal or Hand-control or Start-automatic for selection of the most suitable control system for your application.
• Maintenance free machine base - no motor brush change, no gearbox -oil change, no disc change clutch, no drive chain replacement etc.
|
 |
 |
 |
|
|
