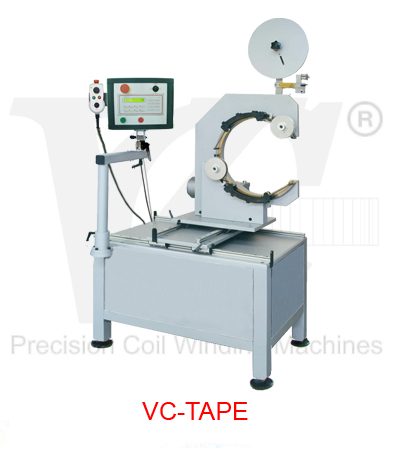

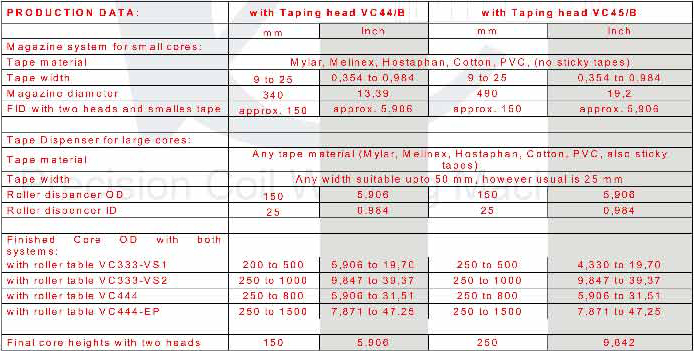

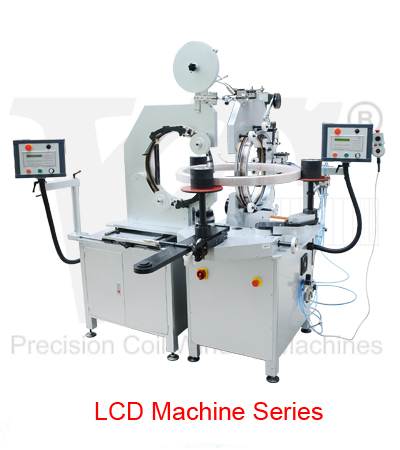

TAPING MACHINE UNIT LCD SERIES |
| |
The VC-FLOOR-TAPE is a stand alone taping machine,which can be placed next to any toroidal winding floor machine and then enables to tape the transformers,during the winding process.It is therefore most flexible and economic.
Typical applications are the production of instrument transformers,whereas the wound coil requires interlayer taping insulation.
The taping head is mounted on a slide plate,which easily moves the head into the core.V&C offers a range of interchangeable taping heads that can be mounted onto the slide plate.
|

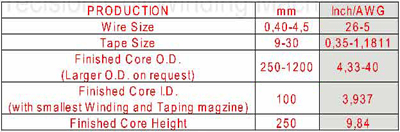

TECHNICAL DATA
OPERATION:
Only in conjunction with the Winding Machine Unit
CONTROLLER:
Microprocessor Controller
DISPLAY:
LCD-Display with background illumination
Continous read out of operation details
CONTROL-BUTTONS:
Selecting switch for single Taping Head Operation or Double Head Operation
Control knob for adjustments of speed and pitch
Quick programming knob
Joystick for Magazine movements
START and STOP buttons
Emergency stop button
PROGRAM CAPACITY:
200 Programs with 1 sequence
PROGRAMMING:
User friendly text commands
Separate menu for machine set up
Separate menu for Taping program, completed by changing two parameters:
No. of magazine loading turns and no. of taping turns
DATA MEMORY:
Interface for PC
nterface for software updates
TAPING SPEED:
Up to 140 RPM
TAPE OVERLAPPING:
Controlled by Operator Pitch Knob
STOPS FOR RELOAD MAGAZINE:
Fully automatic, according to taping program
ACCELERATION & DECELERATION:
Fully Automatic
STOPS FOR TAPS:
Fully Automatic
CORE DRIVE:
Controlled by Winding Machine
HEAD DRIVE:
SERVO MOTOR 2,0 KW
SUPPLY VOLTAGES:
230 (110 AND 240) VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
800 x 800 mm, 400 kg net, 550 kg gross
|
|
 |
| |

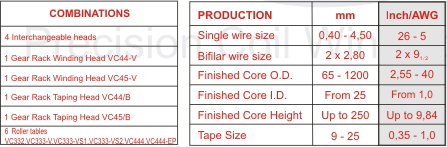

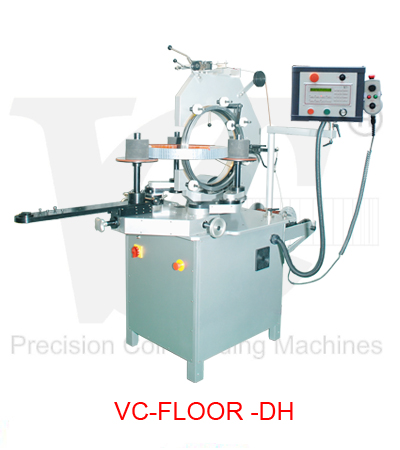

WINDING MACHINE UNIT LCD SERIES |
| |
The VC-FLOOR is a Hi-Tech machine with easy to read LCD display and incorporates VC's flexible system with interchangeable heads and roller tables. It is designed for very heavy applications and built with strong and modern components: microprocessor control, heavy SERVO motor for head drive and strong servo motor for core drive. The software guides the operator thru the programming with clear text commands. The user friendly programming and the clearly positioned control knobs make the VC-FLOOR extremely fast to set up and very easy to use. Typical applications for the VC-FLOOR are general jobs with large cores or winding applications with heavy round or flat wires.
|
TECHNICAL DATA
CONTROLLER:
Microprocessor Controller
DISPLAY:
LCD-Display with background illumination
Continous read out of operation details
PROGRAM CAPACITY:
The capacity is variable, i.e.:
8000 Programs with 1 sequence
200 Programs with 40 sequences
1 Program with 8000 sequences
PROGRAMMING:
User friendly text commands
Separate menu for machine set up
DATA MEMORY:
Interface for PC
Interface for Software updates
WINDING SPEED:
Up to 1800 rpm
Separately programmable load speeds
Separately programmable wind speeds
CORE DRIVE :
Servo Motor 1,5 KW
WIRE PLTCH CONTROL:
Fully automatic pitch change
Programmable in steps of 0,001 mm
CORE INDEX & REVERSE CONTROL:
Fully automatic
ACCELERATION & DECELERATION:
Fully automatic
STOPS FOR TAPS:
Fully automatic
SECTOR & BANK WINDING CONTROL:
Fully automatic
TAPING OPERATION:
Fully automatic
WINDING HEAD DRIVE:
Servo Motor 2,0 KW/6,8 Nm
SUPPLY VOLTAGES:
230 (110 AND 240) VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
1100 x 1100 mm, 600 kg net, 700 kg gross
|
|
|
|
|
|
|
