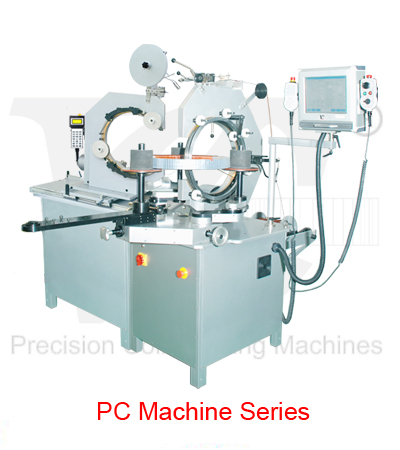

TAPING MACHINE UNIT PC SERIES |
| |

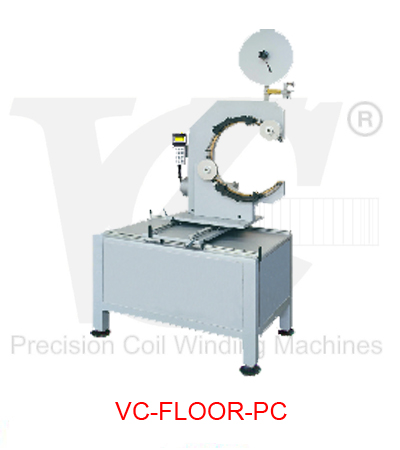

The VC-FLOOR-TAPE is a stand alone taping machine,which can be placed next to any toroidal winding floor machine and then enables to tape the transformers,during the winding process.It is therefore most flexible and economic.The machine can also be used as an independent taping Unit for applications witch don't need pitch,such as field Coils with flat tables or bars or rods.
Typical applications are the production of instrument transformers,whereas the wound coil requires interlayer taping insulation.
The taping head is mounted on a slide plate,which easily moves the head into the core.V&C offers a range of interchangeable taping heads that can be mounted onto the slide plate.
|

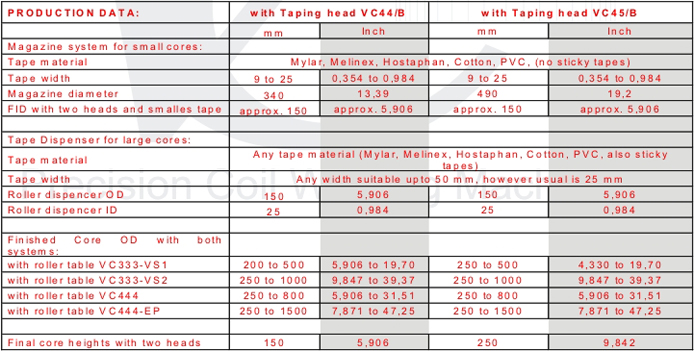

TECHNICAL DATA
OPERATIONS:
In conjunction with the Winding Machine Unit controlled by PC of Winding Unit
Stand alone: as independent Taping Machine with separate Hand Control Unit with LCD display
CONTROLLER:
PLC Control
DISPLAY:
Touch PC 12.1" from Winding Unit with split screen display of taping and winding data
Multi Language Selection
CONTROL-BUTTONS:
Selecting switch for single Taping Head Operation or Double Head Operation
Control knob for adjustments of speed and pitch
Joystick for Magazine movements
START and STOP buttons
Emergency stop button
PROGRAM CAPACITY:
Unlimited
Operation System Windows XP
PROGRAMMING:
User friendly and graphical screens
Automatic calculation o f coil program
DATA MEMORY:
USB, Cable Network, W-LAN, Ethernet
TAPING SPEED:
Up to 140 RPM
TAPE OVERLAPPING:
Controlled by Operator Pitch Knob
STOPS FOR RELOAD MAGAZINE:
Fully automatic
ACCELERATION & DECELERATION:
Fully Automatic
STOPS FOR TAPS:
Fully Automatic
CORE DRIVE:
Controlled by Winding Machine
HEAD DRIVE:
SERVO MOTOR 2,0 KW
SUPPLY VOLTAGES:
230 (110 AND 240) VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
800 x 800 mm, 400 kg net, 550 kg gross
|
|
 |
| |
WINDING MACHINE UNIT PC SERIES |
| |

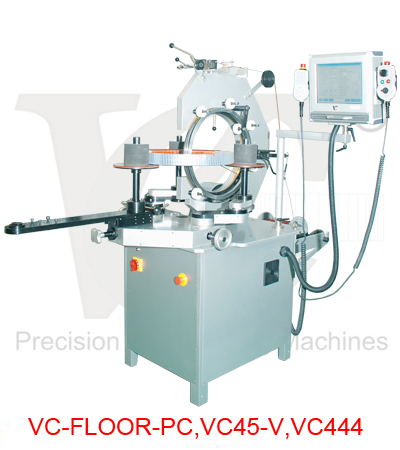

The VC-FLOOR-PC is a Hi-Tech machine with PLC control and PC with touch screen and incorporates VC's flexible system with interchangeable heads and roller tables. It is designed for very heavy applications and built with strong heavy SERVO motors for head drive and for core drive. The software guides the operator thru the programming with clear graphical commands. The user friendly remote hand control system and remote switch control system make the VC-FLOOR-PC extremely fast to set up and very easy to use. Typical applications for the VC-FLOOR-PC are general and sophisticated jobs with large cores or winding applications with heavy round or flat wires.
|

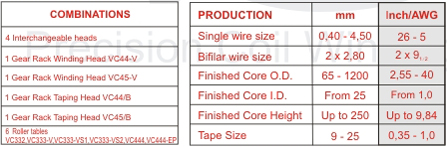

TECHNICAL DATA
CONTROLLER:
PLC Control
DISPLAY:
Touch Screen 12.1"
Multi Language Selection
PROGRAM CAPACITY:
Unlimited
Operation System Windows XP
PROGRAMMING:
User friendly and graphical screens
Automatic calculation o f coil program
DATA MEMORY:
USB, Cable Network, W-LAN, Ethernet
WINDING SPEED:
Up to 160 rpm
CORE DRIVE :
Servo Motor 0,8 KW/3,3 Nm
WIRE PLTCH CONTROL:
Fully automatic pitch change
Programmable in steps of 0,001 mm
CORE INDEX & REVERSE CONTROL:
Fully automatic
ACCELERATION & DECELERATION:
Fully automatic
STOPS FOR TAPS:
Fully automatic
SECTOR & BANK WINDING CONTROL:
Fully automatic
TAPING OPERATION:
Fully automatic
WINDING HEAD DRIVE:
SERVO MOTOR 2,0 KW/8,6 Nm
SUPPLY VOLTAGES:
230 (110 AND 240) VOLT, 50 HZ AC
MACHINE SIZE AND WEIGHT:
1100 x 1100 mm, 600 kg net, 700 kg gross
|
|
|
|
|
|
|
