TECHNICAL DATA
CONTROLLER:
Microprocessor with LCD display
Multi Language Selection
DISPLAY:
LCD-Display with background Illumination:
Continuous read out of operation details
PROGRAMS:
200 Programs:
Basic programming (quick jobs)
Advanced programming (sophisticated jobs)
PROGRAMMING:
User friendly text commands
Separate menu for basic set up
DATA MEMORY:
Interface for PC
Interface for software updates
OPERATOR CONTROLS:
Control Board TP25: 25 Function/Save/Teach keys
Hand Control Unit: Joystick, start/stop, speed knob
Foot Pedals: speed control, spindle brake, creep
SETTING OF LEFT AND RIGHT LIMITS:
With teach and learn system

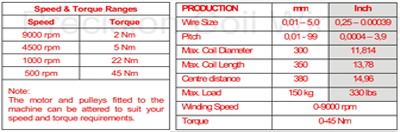

SPEED AND TORQUE CHANGE:
2 Pulleys
One with high torque for heavy wires
One with high speed for light wires
TRAVERSE:
Precision ball screw
Servo Motor 0,4 KW
MOTOR POWER:
Servo Motor 1,5 KW
MACHINE WEIGHT:
Approx. 150 kg net, 250 kg gross
MACHINE SPACE:
Approx. 1150 mm x 520 mm

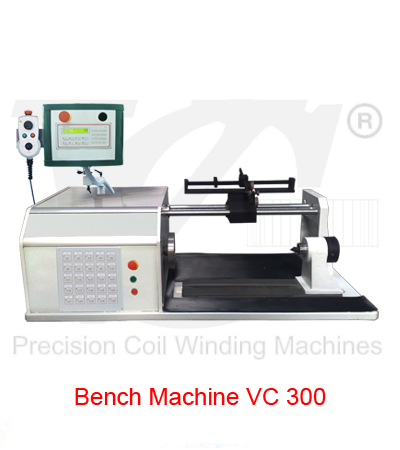

BASIC MACHINE CONSISTS OF:
1 x Machine Base Plate
1 x Winding Spindle (with faceplate)
1 x Traverse Unit
1 x Wire Guide Arm
1 x Tailstock (with hand lever)
1 x Safety Interlock
1 x Machine Controller
1 x Machine Control Board
1 x Foot Pedal (speed control and spindle break)
1 x Hand Control Unit
|
