  BW2-S

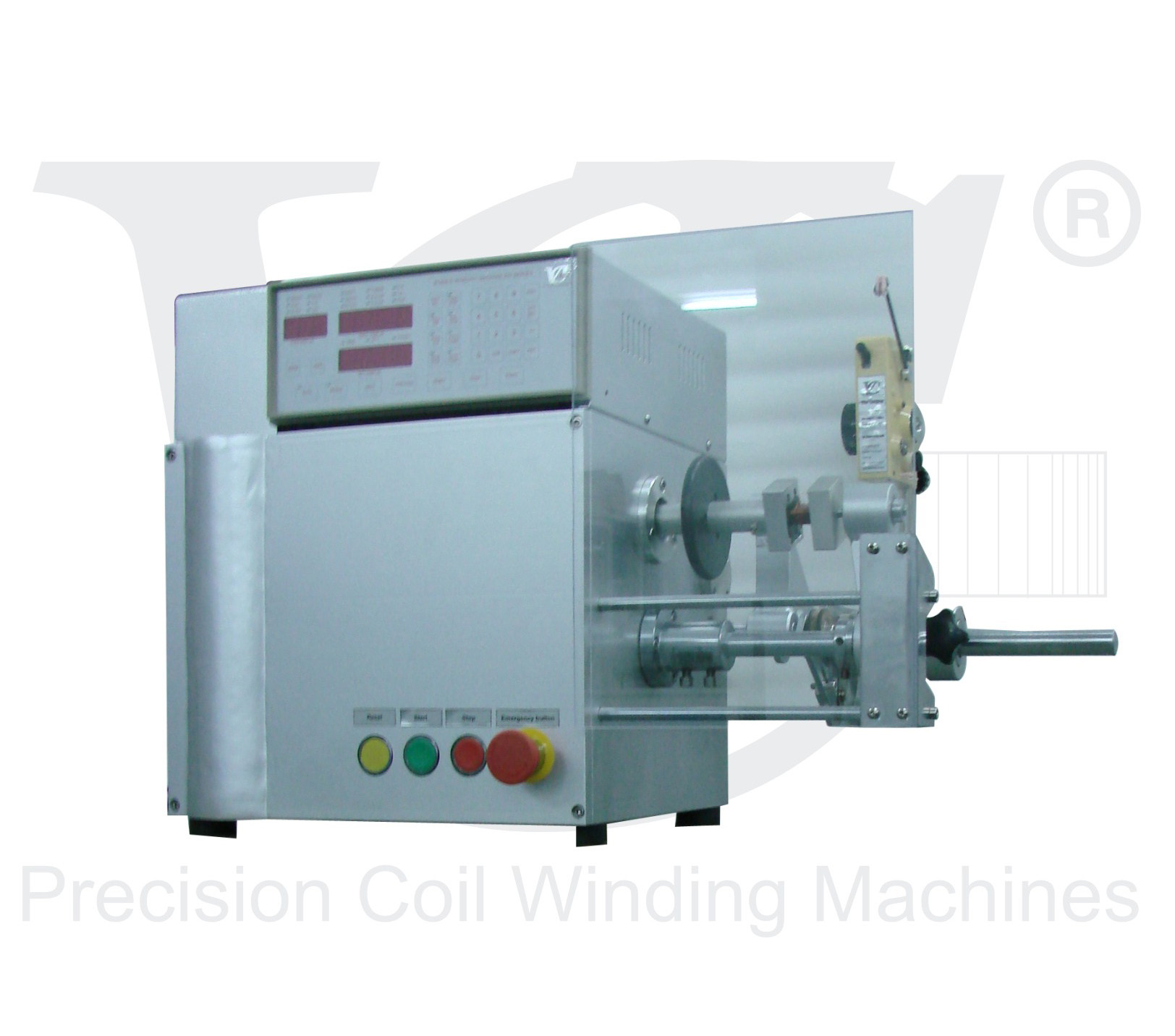

  The BW2-S is an up-to-date microprocessor controlled bench model of high quality and considerable value .It is designed for high-frequency switching power coils, multifunctional controller and stable winding pitch system. It uses a special inverter motor and driver as its main winding power, and a precise stepping motor to adjust wire pitch in order to meet the extra requirement of customer’s high-quality control.And it has proven to be the optimal choice in VC’s BOBBIN winding machines for heavy wire applications with one spindle.

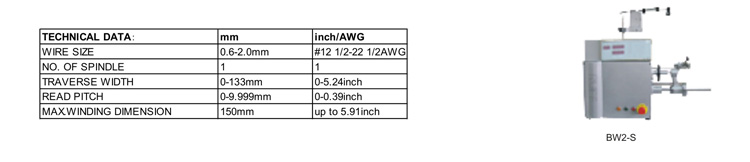

CONTROLLER
Microprocessor Logic control

DISPLAY
LED Display

MEMORY CAPACITY
999 Programs

PROGRAMMING
Manual Set-Up

WINDING SPEED
ratio low=1500 rpm
ration high=5000rpm

WINDING DRIVE
POWER AC INVERTER MOTOR

WIRE PITCH CONTROL
STEPPING MOTOR

ACCELERATION
PROGRAM AUTOMATIC

DECELERATION
PROGRAM AUTOMATIC

MAIN WINDING DRIVE POWER
AC 1HP INVERTER MOTOR

SUPPLY VOLTAGES
230 VOLT,50-60HZ

MACHINE SIZE AND WEIGHT
L550mm X W460mm X H450MM 38KG

Option:
taIlstock with swing away function
